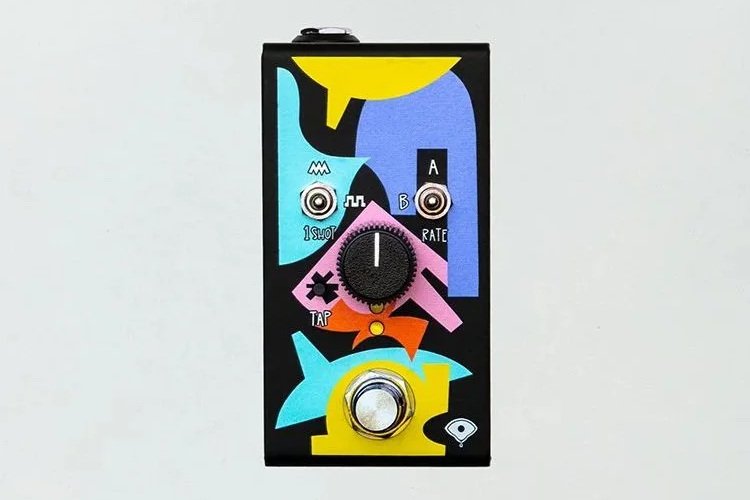

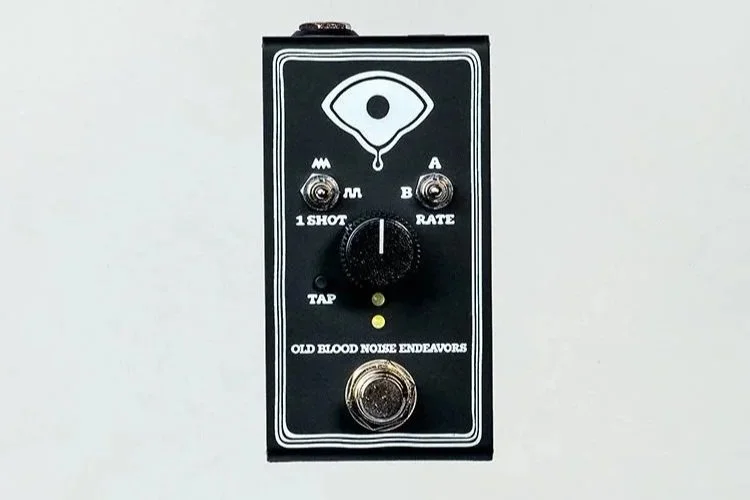

Expression Ramper allows you to pick two expression settings (A and B) and move between them, either in one motion or as a continuous LFO activated by a footswitch. The mini enclosure size takes up minimal space while creating new sounds out of any pedal with an expression input.

Controls include:

• Shape toggle to determine LFO motion (triangle, square, or one-shot)

• Alternate wave shapes accessible via Tap switch (smooth random, sharp random, or one-shot random)

• Assignable knob to set A position, B position, and LFO Rate

• Tap switch to set rate via tap tempo

• Footswitch to set expression output in motion, with momentary or latching operation

• Internal configuration for TRS, TRS reverse polarity, and TS configurations, as well as ability to replace built-in 50K digipot with 10K or 100K versions

For more information, see the Expression Ramper manual available here.

Requires 9V DC center negative 2.1mm jack power supply capable of 50mA (not included).

Dimensions: 2” (width) x 3.75” (height) x 2” (depth).

The art of Expression Ramper HK is by Holey Kids.

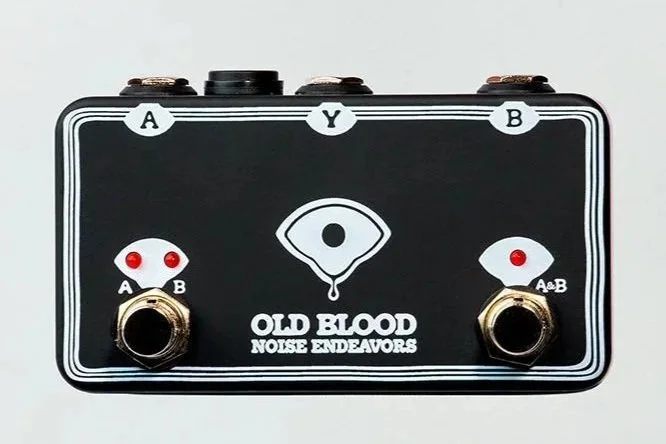

The Old Blood Noise Endeavors AB/Y Switcher is a classic passive AB/Y switcher, giving you three mono jacks (A, B, and Y), and the choice of whether Y is connected to A, B, or both. Turn one input into two outputs, or vice versa. No impedance matching, phase correction, etc., just a simple tool for simple applications.

Two footswitches make it easy - on the right, the A&B footswitch sets whether Y is connected to both A and B or only one of them; on the left, the A or B footswitch sets whether A or B is connected to Y when A&B is off. LEDs show you how everything is set.

AB/Y can pass signal without power, but the LED indication requires a 9V DC center negative 2.1mm jack power supply capable of 10mA (not included).

The art of the AB/Y Switcher HK is by Holey Kids.

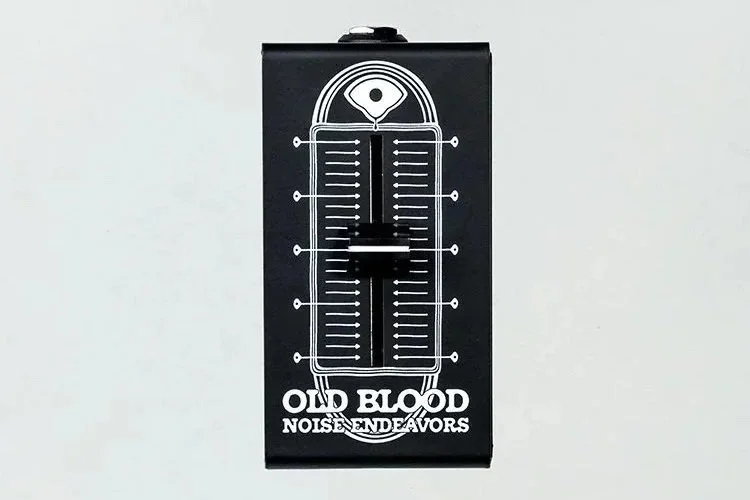

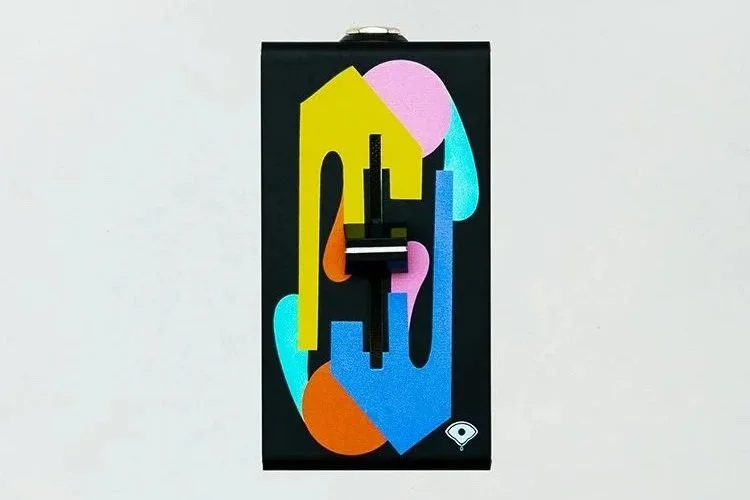

Expression Slider is a fader for use with any pedal that has an Old Blood style expression input*. It is built for convenience and tactile experience, allowing external control where you need it - on the desk of your studio, velcroed to a guitar strap, or wherever else a TRS cable allows.

For more information, see the Expression Slider manual available here.

Expression Slider is entirely passive and requires no power supply.

The art of Expression Slider HK is by Holey Kids.

*Expression Slider uses a TRS jack with tip connected to the wiper of a 50K slider, and ring and sleeve connected to the other terminals. We’ve confirmed that it works with all Old Blood pedals as well as pedals from Chase Bliss, Meris, Earthquaker Devices, Empress, Montreal Assembly, Red Panda, Strymon, EHX, and more.

Dimensions: 2” (width) x 3.75” (height) x 2” (depth).

Split Meld is a box that connects two TS (mono) connections to one TRS (stereo) connection. It is helpful in stereo setups when one stereo element uses a TRS connection and another stereo element uses two TS connections. Signals remain separate and unaffected by each other, only the connection type is changed.

For more information, see the Split Meld manual available here.

Split Meld is entirely passive and requires no power supply.

The art of Split Meld is by Holey Kids.

Signal Blender Stereo is designed for making parallel effects loops, giving new creative options beyond the sounds of pedals in series. Collaboration with 29 Pedals means this pedal has massive headroom (+-15V) and clean phase response throughout the signal path. It can also be a one-to-three splitter or three-to-one combiner, making it a versatile tool for your setup. Features include:

• Stereo input and output, and two stereo effects loops, with the option for mono-to-stereo splitting at the main input

• Can be used in mono with TS cables instead of TRS cables

• Individual volume knobs and footswitches to set the amount of Loop A, Loop B, or Clean signal at the Output

• Trails switching for Loop A and Loop B

• Phase inversion switch for the return of Loop A and Loop B

• MIDI control of on/off and trails switches

• Option for true bypass from input to output when all switches are off

• Soft touch switching

• 9V center negative DC power input, scaled up to +-15V internally

For more information, see the Signal Blender Stereo manual available here.

Requires 9V DC center negative 2.1mm jack power supply capable of 500mA (not included).

The art of Signal Blender is by Holey Kids. We made these improvements with our friend Jesse from 29 Pedals.

Dimensions: 5.4” x 5” x 2”

Expression Ramper X3 is more than the sum of its parts. It starts with three individual Expression Rampers, which are devices allowing you to pick two expression settings and move between them, either in one motion or as a continuous LFO activated by a footswitch. It then adds tempo syncing, new LFO shapes, and other external controls, all in one tidy box. It is the ultimate device for getting new sounds out of your existing expression-enabled pedals.

Controls per Ramper include:

• Set toggle and knob to set A position, B position, and LFO Rate

• Shape toggle to determine LFO motion (triangle, square, one-shot, smooth random, sharp random, or one-shot random)

• Footswitch to set expression output in motion

• Internal configuration for TRS, TRS reverse polarity, and TS expression compatibility, as well as ability to replace built-in 50K digipot with 10K or 100K versions

In addition, Rampers II and III include:

• Sync toggle to match Ramper I’s speed or entire output

• Subdivisions when synced, via the Rate setting

Ramper I includes:

• Tap Tempo switch

• Tap/Exp input jack

• Tap Out jack

For more information, see the Expression Ramper X3 manual available here.

Requires 9V DC center negative 2.1mm jack power supply capable of 50mA (not included).

The art of Expression Ramper X3 is by Holey Kids.

Many OBNE pedals use TRS Stereo connections. Sometimes adapters are helpful. The Y Splitter helps go from a TRS to dual TS connection. From the Pedal Gear Designs site:
SPECS

• For splitting TRS stereo signals into TS mono signals or as insert cable for TRS effects loops

• High-Quality Flat Angled Y-Splitter Cable

• Ultimate Space-Saving Compact Design

• Easy Grip Edge Super Flat Angled Plugs

• 0.25" / 6.3 mm Audio TS Connection Jacks

• Flexible Copper Conductor (20 x 0.12 mm / 26 AWG)

• Twisted Copper Shielding (38 x 0.12 mm / 26 AWG)

• Conduct Electricity PVC

• Premium Quality PVC Cable Mantle

• Operating Temperature -15º C to +70° C / 5° F to 158° F

• 1 x angled 6.3 mm TRS audio plug

• 2 x angled 6.3 mm TS audio plugs (red / black)

• Tip = Black, Ring = Red

• Length 12" / 30.48 cm or Length 18" / 45.7 cm

The Best Patch Cables for your Pedalboard

Flat Pedal Y-Splitter Cable features 99.9% Pure Oxygen-Free Copper (OFC) for both conductors and its 95% twisted shield. Holds a capacitance of 100pF and conductor resistance of less than 100 mOhm per meter. Its small outer diameter of 3mm makes it extremely flexible and ideal for sending your stereo signal into mono from your effect pedals and racks.

Many OBNE pedals use TRS Stereo connections. Patch Stereo to Stereo via these TRS cables. From the Pedal Gear Designs site:
SPECS

• High-Quality Flat Angled TRS Plugs

• Ultimate Space-Saving Compact Design

• Easy Grip Edge Super Flat Angled Plugs

• 0.25" / 6.3 mm Audio TRS Connection Jacks

• Flexible Copper Conductor (20 x 0.12 mm / 26 AWG)

• Twisted Copper Shielding (38 x 0.12 mm / 26 AWG)

• Conduct Electricity PVC

• Premium Quality PVC Cable Mantle

• Operating Temperature -15º C to +70° C / 5° F to 158° F

• Black Colour

Length 6" / 15.25 cm or 15" / 38.1 cm

The Best Patch Cables for your Pedalboard

Flat Pedal Cables 99.9% Pure Oxygen-Free Copper (OFC) for both conductors and its 95% twisted shield. Holds a capacitance of 120pF per meter that is in the sweet spot range for instrument cables. Its small outer diameter of 3.6mm makes it extremely flexible and ideal for pedalboards and racks.

Many OBNE pedals use TRS Stereo connections. Patch Stereo to Stereo via these TRS cables. From the Pedal Gear Designs site:
SPECS

• High-Quality Flat Angled TRS Plugs

• Ultimate Space-Saving Compact Design

• Easy Grip Edge Super Flat Angled Plugs

• 0.25" / 6.3 mm Audio TRS Connection Jacks

• Flexible Copper Conductor (20 x 0.12 mm / 26 AWG)

• Twisted Copper Shielding (38 x 0.12 mm / 26 AWG)

• Conduct Electricity PVC

• Premium Quality PVC Cable Mantle

• Operating Temperature -15º C to +70° C / 5° F to 158° F

• Black Colour

Length 6" / 15.25 cm or 15" / 38.1 cm

The Best Patch Cables for your Pedalboard

Flat Pedal Cables 99.9% Pure Oxygen-Free Copper (OFC) for both conductors and its 95% twisted shield. Holds a capacitance of 120pF per meter that is in the sweet spot range for instrument cables. Its small outer diameter of 3.6mm makes it extremely flexible and ideal for pedalboards and racks.
